Features
- Delivery for OEM with project-specific program status
- HP package for 4 cylinder engines
- Supports Customer Code Area CCA
- 8 GB memory
- SENT support

The MS 6 CUP EVO engine control unit manages gasoline engines up to 4 cylinders. As a member of our MS 6 family it features a powerful digital processing core with floating point arithmetic and a high-end FPGA for ultimate performance and flexibility. The MS 6 family utilizes a new software development process based on MATLAB/Simulink which significantly speeds algorithm development by using automatic code and documentation generation. Custom functions can be quickly and easily generated. The flexible hardware design allows the MS 6 CUP EVO to support complex or unusual engine or chassis configurations.

Please find further detailed information on the data sheet.

Ordering Information

Engine Control Unit MS 6 CUP EVO

Order number: F02U.V03.111-01


CCA Hardware Upgrade per device

Order number: F02U.V02.137-01



Software Options

FULL_LOG_1

Order number: F02U.V02.304-01


FULL_LOG_2

Order number: F02U.V02.305-01


Gear Control

Order number: on request


Innovation License Device

Order number: F02U.V02.510-01


Innovation Package Project

Order number: F02U.V02.511-01



Accessories

USB_DATA

Order number: F02U.V02.214-01


Breakout Box BOB MS 6 EVO

Order number: F02U.V02.294-02


Mating Connector 91 pins

Order number: F02U.B00.711-01


Mating Connector 105 pins

Order number: F02U.B00.712-01




More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/254277259254340491.html#/Tabs=265038603/

Features
- Optimized for low pressure injection
- Measurement with 21 analog inputs
- Supports Customer Code Area CCA
- 4 GB memory plus 4 GB upgrade
- SENT support

The MS 6.1 EVO engine control unit manages gasoline engines up to 12 cylinders. As a member of our MS 6 family it features a powerful digital processing core with floating point arithmetic and a high-end FPGA for ultimate performance and flexibility. The MS 6 family utilizes a new software development process based on MATLAB/Simulink which significantly speeds algorithm development by using automatic code and documentation generation. Custom functions can be quickly and easily generated. The flexible hardware design allows the MS 6.1 EVO to support complex or unusual engine or chassis configurations.

Please find further detailed information on the data sheet.

Ordering Information

Engine Control Unit MS 6.1 EVO

Order number: F02U.V03.113-01


CCA Hardware Upgrade per device

Order number: F02U.V02.137-01



Software Options

Engine Function Package 1

Order number: F02U.V02.001-01


Engine Function Package 2

Order number: F02U.V02.002-01


Measurement Package

Order number: F02U.V02.000-01


FULL_LOG_1

Order number: F02U.V02.304-01


FULL_LOG_2

Order number: F02U.V02.305-01


Gear Control Package 1

Order number: please contact Mega-Line


Gear Control Package 2

Order number: F02U.V02.108-01


SW Package MS 6 Drag 1

Order number: F02U.V0U.409-01


SW Package MS 6 Drag 2

Order number: F02U.V0U.410-01


Innovation License Device

Order number: F02U.V02.510-01


Innovation Package Project

Order number: F02U.V02.511-01



Accessories

USB_DATA

Order number: F02U.V02.214-01


Breakout Box BOB MS 6 EVO

Order number: F02U.V02.294-02


Mating Connector 91 pins

Order number: F02U.B00.711-01


Mating Connector 105 pins

Order number: F02U.B00.712-01




More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/253754379253779979.html#/Tabs=265068043/

Features
- Optimized for low pressure injection
- Measurement with 38 analog inputs
- Supports Customer Code Area CCA
- 4 GB memory plus 4 GB upgrade
- SENT support

The MS 6.2 EVO engine control unit manages gasoline engines up to 12 cylinders. As a member of our MS 6 family it features a powerful digital processing core with floating point arithmetic and a high-end FPGA for ultimate performance and flexibility. The MS 6 family utilizes a new software development process based on MATLAB/Simulink which significantly speeds algorithm development by using automatic code and documentation generation. Custom functions can be quickly and easily generated. The flexible hardware design allows the MS 6.2 EVO to support complex or unusual engine or chassis configurations.

Please find further detailed information on the data sheet.

Ordering Information

Engine Control Unit MS 6.2 EVO

Order number: F02U.V03.115-01


CCA Hardware Upgrade per device

Order number: F02U.V02.137-01



Software Options

FULL_LOG_1

Order number: F02U.V02.304-01


FULL_LOG_2

Order number: F02U.V02.305-01


Gear Control Package 1

Order number: please contact Mega-Line


Gear Control Package 2

Order number: F02U.V02.108-01


SW Package MS 6 Drag 1

Order number: F02U.V0U.409-01


SW Package MS 6 Drag 2

Order number: F02U.V0U.410-01


Innovation License Device

Order number: F02U.V02.510-01


Innovation Package Project

Order number: F02U.V02.511-01



Accessories

USB_DATA

Order number: F02U.V02.214-01


Breakout Box BOB MS 6 EVO

Order number: F02U.V02.294-02


Mating Connector 91 pins

Order number: F02U.B00.711-01


Mating Connector 105 pins

Order number: F02U.B00.712-01



More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/253756555253781259.html#/Tabs=265064843/

Features
- Optimized for low and high pressure injection
- Measurement with 21 analog inputs
- Supports Customer Code Area CCA
- 4 GB memory plus 4 GB upgrade
- SENT support

The MS 6.3 EVO engine control unit manages gasoline engines up to 12 cylinders. As a member of our MS 6 family it features a powerful digital processing core with floating point arithmetic and a high-end FPGA for ultimate performance and flexibility. The MS 6 family utilizes a new software development process based on MATLAB/Simulink which significantly speeds algorithm development by using automatic code and documentation generation. Custom functions can be quickly and easily generated. The flexible hardware design allows the MS 6.3 EVO to support complex or unusual engine or chassis configurations.

Please find further detailed information on the data sheet.

Ordering Information

Engine Control Unit MS 6.3 EVO

Order number: F02U.V03.110-01


CCA Hardware Upgrade per device

Order number: F02U.V02.137-01



Accessories

High Pressure Injection Package

Order number: F02U.V01.999-01


Measurement Package

Order number: F02U.V02.000-01


FULL_LOG_1

Order number: F02U.V02.304-01


FULL_LOG_2

Order number: F02U.V02.305-01


Gear Control Package 1

Order number: please contact Mega-Line


Gear Control Package 2

Order number: F02U.V02.108-01


SW Package MS 6 Drag 1

Order number: F02U.V0U.409-01


SW Package MS 6 Drag 2

Order number: F02U.V0U.410-01


Innovation License Device

Order number: F02U.V02.510-01


Innovation Package Project

Order number: F02U.V02.511-01



Software Options

USB_DATA

Order number: F02U.V02.214-01


Breakout Box BOB MS 6 EVO

Order number: F02U.V02.294-02


Mating Connector 91 pins

Order number: F02U.B00.711-01


Mating Connector 105 pins

Order number: F02U.B00.712-01



More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/253758731253782539.html#/Tabs=265061643/

Features
- Optimized for low and high pressure injection
- Measurement with 38 analog inputs
- Supports Customer Code Area CCA
- 4 GB memory plus 4 GB upgrade
- SENT support

The MS 6.4 EVO engine control unit manages gasoline engines up to 12 cylinders. As a member of our MS 6 family it features a powerful digital processing core with floating point arithmetic and a high-end FPGA for ultimate performance and flexibility. The MS 6 family utilizes a new software development process based on MATLAB/Simulink which significantly speeds algorithm development by using automatic code and documentation generation. Custom functions can be quickly and easily generated. The flexible hardware design allows the MS 6.4 EVO to support complex or unusual engine or chassis configurations.

Please find further detailed information on the data sheet.

Ordering Information

Engine Control Unit MS 6.4 EVO

Order number: F02U.V03.114-01


CCA Hardware Upgrade per device

Order number: F02U.V02.137-01



Software Options

FULL_LOG_1

Order number: F02U.V02.304-01


FULL_LOG_2

Order number: F02U.V02.305-01


Gear Control Package 1

Order number: please contact Mega-Line


Gear Control Package 2

Order number: F02U.V02.108-01


SW Package MS 6 Drag 1

Order number: F02U.V0U.409-01


SW Package MS 6 Drag 2

Order number: F02U.V0U.410-01


Innovation License Device

Order number: F02U.V02.510-01


Innovation Package Project

Order number: F02U.V02.511-01



Accessories

USB_DATA

Order number: F02U.V02.214-01


Breakout Box BOB MS 6 EVO

Order number: F02U.V02.294-02


Mating Connector 91 pins

Order number: F02U.B00.711-01


Mating Connector 105 pins

Order number: F02U.B00.712-01



More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/253760907253783819.html#/Tabs=48714763/

Features
- 866 MHz Dual Core Processor for projects with high performance demand
- Supports Customer Code Area CCA
- 4 GB memory plus 16 GB upgrade
- SENT support

The MS 6.4P EVO engine control unit manages gasoline engines up to 12 cylinders. The MS 6 family provides high control performance, logging capabilities and an extensive feature set to improve performance in your application. It features a powerful digital processing core and a high-end FPGA for ultimate performance and flexibility. Custom functions can be provided quickly and easily as a service or implemented as customer code with MATLAB/Simulink. The MS 6 family is fully integrated into the Bosch Motorsport system architecture.
Hint: Specific Software Version for MS 6.4P EVO needed, not compatible with MS 6.4 EVO software.

Please find further detailed information on the data sheet.

Ordering Information

Engine Control Unit MS 6.4P EVO

Order number: F02U.V03.112-01


CCA Hardware Upgrade per device

Order number: F02U.V02.137-01


Engine Control Unit MS 6 EVO RX

FIA-homologated version for WRX Championship


Order number: on request



Software Options

FULL_LOG_1

Order number: F02U.V02.304-01


PERF_LOG_1

Order number: F02U.V03.054-01


FULL_LOG_2

Order number: F02U.V02.305-01


Gear Control Package 1

Order number: please contact Mega-Line


Gear Control Package 2

Order number: F02U.V02.108-01


Specific project SW for MS 6.4 Performance, based on MS 6.4 SW, offered as engineering service


Order number: on request


SW Package MS 6 Drag 1

Order number: F02U.V0U.409-01


SW Package MS 6 Drag 2

Order number: F02U.V0U.410-01


Innovation License Device

Order number: F02U.V02.510-01


Innovation Package Project

Order number: F02U.V02.511-01



Accessories

USB_DATA

Order number: F02U.V02.214-01


Breakout Box BOB MS 6 EVO

Order number: F02U.V02.294-02


Mating Connector 91 pins

Order number: F02U.B00.711-01


Mating Connector 105 pins

Order number: F02U.B00.712-01



More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/254275083254337675.html#/Tabs=305335179/

- Optimized for low and high pressure injection
- Data logger included
- Gearbox control optionally included
- Gigabit data interface

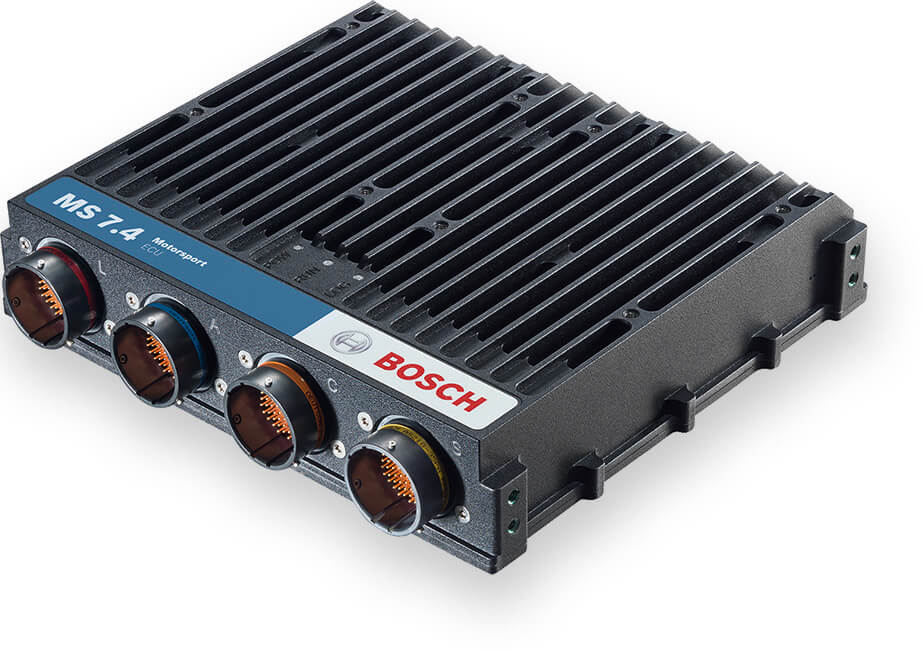

The MS 7.4 engine control unit manages gasoline engines up to 12 cylinders. The MS 7 line features a powerful digital processing core with floating point arithmetic and a high-end FPGA for ultimate performance and flexibility. The MS 7 line utilizes a software development process based on MATLAB/Simulink which significantly speeds up algorithm development by using automatic code and documentation generation. Custom functions can be generated quickly and easily. The flexible hardware design allows the MS 7.4 to support complex or unusual engine or chassis configurations.

Please find further detailed information on the data sheet.

Ordering Information

Engine Control Unit MS 7.4

Order number: F02U.V02.514-02



Software Options

Customer Code Area

Order number: F02U.V02.137-01


Gear Control Package 1

Order number: please contact Mega-Line


Gear Control Package 2

Order number: F02U.V02.264-01


Cylinder pressure detection base package MS 7.x

Order number: F02U.V02.543-01


Knock detection via cylinder pressure evaluation MS 7.x

Order number: F02U.V02.544-01



Accessories

Breakout Box BOB 66-pole, Connector code blue

Order number: F02U.V02.295-01


Breakout Box BOB 66-pole, Connector code orange

Order number: F02U.V02.296-01


Breakout Box BOB 66-pole, Connector code yellow

Order number: F02U.V02.298-01


Breakout Box BOB MS 7, LIFE-Connector code red

Order number: F02U.V02.293-01



More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/48759947227973387.html#/Tabs=48932363/

- 8 injection output stages
- For solenoid injectors
- 96 data inputs
- Software options available

The MS 25 Sport is an ECU for Diesel engines with up to 8 cylinders. It is developed for use with Bosch solenoid injectors. The MS 25 Sport utilizes a software development process based on MATLAB® & Simulink®.
The MS 25 Sport is able to operate in 12 V or 24 V systems. The base SW is able to control one hydraulic bank configuration with Fuel Metering Unit (FMU) and Pressure Control Valve (PCV).

Please find further detailed information on the data sheet.

Ordering Information

Engine Control Unit MS 25 Sport

Order number: F 02U V0U 800-02



More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/49061131111869835.html#/Tabs=49118347/

Features
- 866 MHz Dual Core Processor exclusively for vehicle control functionality (MATLAB based)
- Identical, dedicated 866 MHz Dual Core Processor exclusively for logging purposes
- High Speed Logging 200 kHz of 6 analog inputs (optional)
- Real time Ethernet SERCOS 3
- Event logging, Configurable pre-event logging

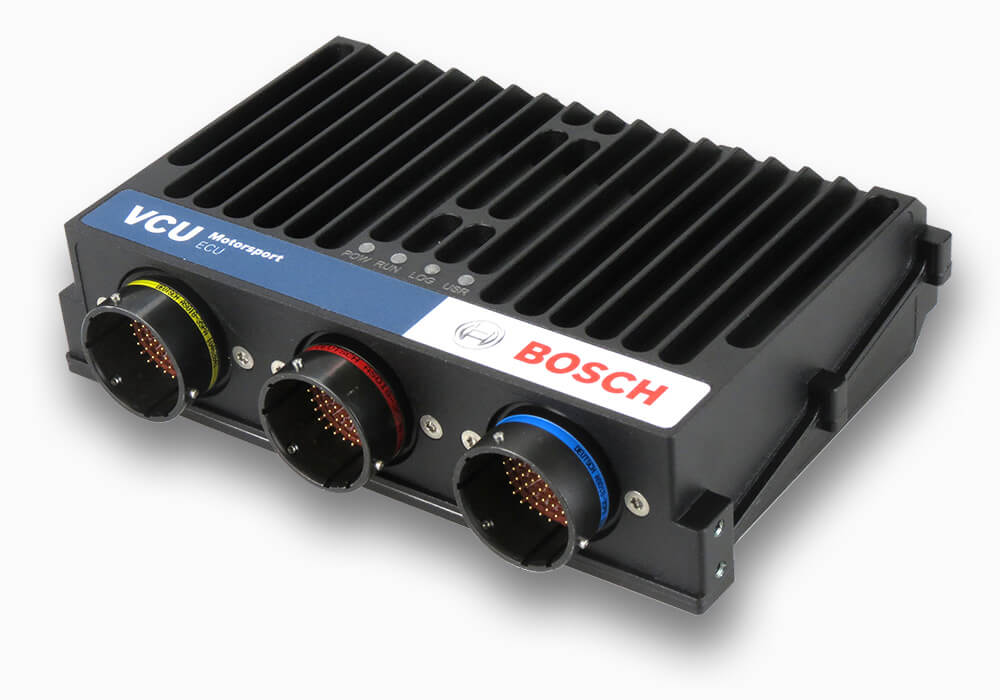

The VCU MS 50.4P (Performance) is a highly powerful processing / logging unit for race applications.
Based on our broad base of platform function, we support you with customized VCU functions for a tailor-made solution.
In addition, you can quickly develop your individual customer software based on MATLAB/Simulink to significantly speed up algorithm development (automatic code and documentation generation) – including extensive simulation capabilities.
The device offers real time Ethernet functionality to exchange e.g. data used in control algorithms between devices (guaranteed latency time 1 ms).

Please find further detailed information on the data sheet.

Ordering Information

Vehicle Control Unit MS 50.4P incl. CCA HW Upgrade

Order number: F02U.V03.014-01



Software Options

I/0 Package

Order number: F02U.V02.777-01


PERF_LOG_1

Order number: F02U.V03.054-01


High Speed Logging Package

Order number: F02U.V02.779-01


CCP_MASTER

Order number: F02U.V02.213-01


Real Time Ethernet

Order number: F02U.V02.782-01



Accessories

Rugged USB flash drive

Order number: F02U.V01.342-03


Mating connector for USB flash drive on car loom side

Order number: F02U.002.996-01


Adapter cable to PC USB-Port

Order number: F02U.V01.343-01


Opening tool for shellsize 18

Order number: F02U.V01.394-01


Breakout Box BOB 66-pole
Connector code: blue

Order number: F02U.V02.295-01


Breakout Box BOB 66-pole
Connector code: yellow

Order number: F02U.V02.298-01


Breakout Box BOB MS 7
Connector code: red

Order number: F02U.V02.293-01




More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/234533003319115019.html#/Tabs=234541323/

Features
- 667 MHz Dual Core Processor exclusively for vehicle control functionality (MATLAB based)
- Identical, dedicated 667 MHz Dual Core Processor exclusively for logging purposes
- High Speed Logging 200 kHz of 6 analog inputs (optional)
- Real time Ethernet SERCOS 3
- Event logging, Configurable pre-event logging

The VCU MS 50.4 is a highly powerful processing / logging unit for race applications.
Based on our broad base of platform function, we support you with customized VCU functions for a tailor-made solution.
In addition, you can quickly develop your individual customer software based on MATLAB/Simulink to significantly speed up algorithm development (automatic code and documentation generation, requires CCA package) – including extensive simulation capabilities.
The device offers real time Ethernet functionality to exchange e.g. data used in control algorithms between devices (guaranteed latency time 1 ms).

Please find further detailed information on the data sheet.

Ordering Information

Vehicle Control Unit MS 50.4

Order number: F02U.V02.965-02


CCA Hardware Upgrade per device

Order number: F02U.V02.137-01


Multi CCA Hardware Upgrade VCU per device

Order number: F02U.V03.222-01


Vehicle Control Unit MS 50.4 incl. CCA HW Upgrade

Order number: F02U.V03.012-01



Software Options

I/0 Package

Order number: F02U.V02.777-01


High Speed Logging Package

Order number: F02U.V02.779-01


CCP_MASTER

Order number: F02U.V02.213-01


Real Time Ethernet

Order number: F02U.V02.782-01



Accessories

Rugged USB flash drive

Order number: F02U.V01.342-03


Mating connector for USB flash drive on car loom side

Order number: F02U.002.996-01


Adapter cable to PC USB-Port

Order number: F02U.V01.343-01


Opening tool for shellsize 18

Order number: F02U.V01.394-01


Breakout Box BOB 66-pole
Connector code: blue

Order number: F02U.V02.295-01


Breakout Box BOB 66-pole
Connector code: yellow

Order number: F02U.V02.298-01


Breakout Box BOB MS 7
Connector code: red

Order number: F02U.V02.293-01




More information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/234686731319096971.html#/Tabs=9007199489436427/

Über uns

Der Partner für all diejenigen, die mehr als Standard wollen! Wir bieten Ihnen Technik aus Meisterhand. Unser Programm umfasst Tuning der Marken Porsche, Audi, VW, Seat und Skoda sowie den Motorsport, Service und Speziallösungen.

Kontakt & Netzwerke
  • Wendland Motorentechnik GmbH
  • Im Hitzenried 3
  • 72414 Rangendingen


Hier prüft der TÜV

Bosch Motorsport Partner

Menü
