Teile
Features
- Features new user interface menu
- All new display element design generator
- 10 additional LEDs on both sides of the device
- Supports GPS laptrigger, pre-dated lap time etc.
- Page change based on events possible

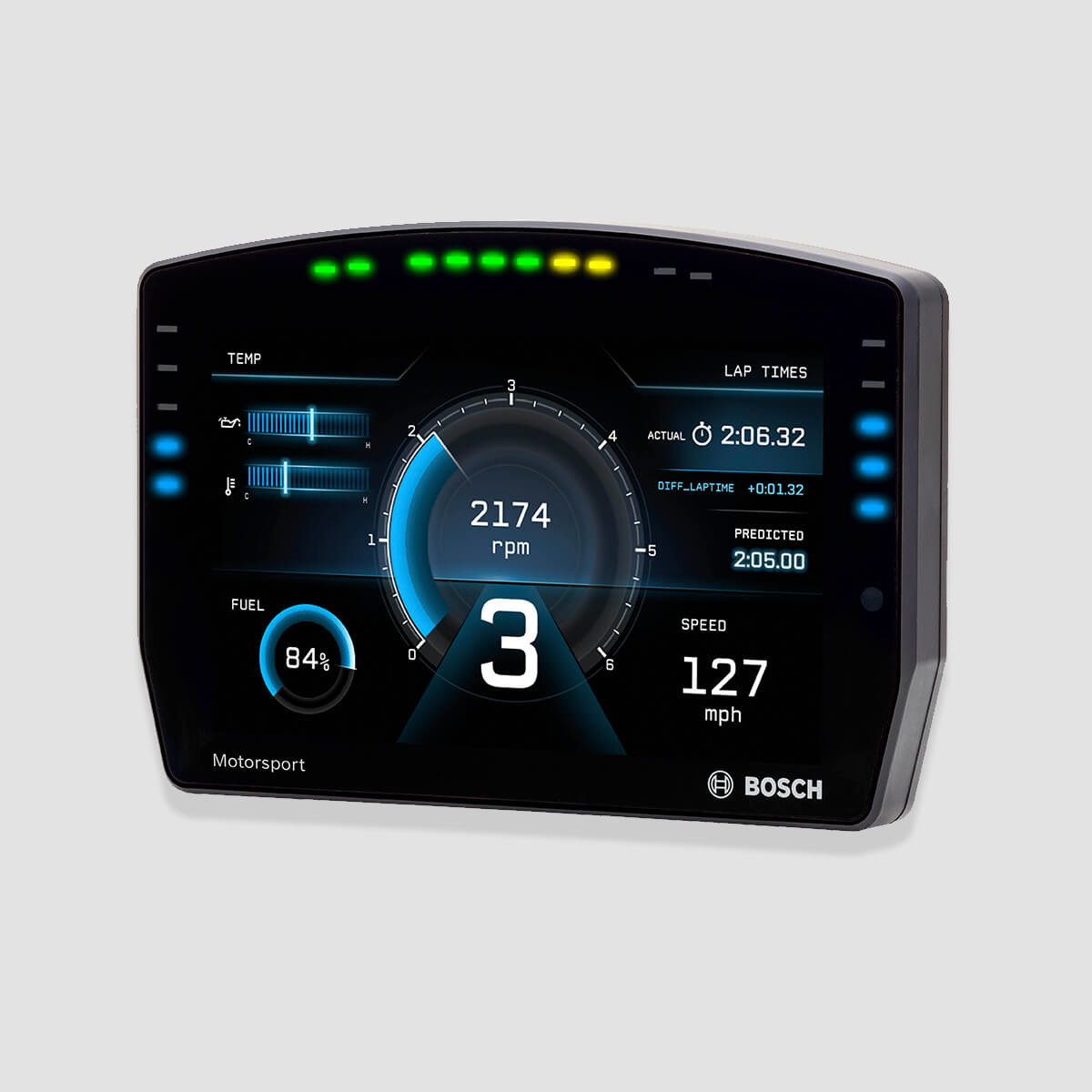

The Display DDU 10 integrates a programmable full colour dashboard display with a data logging system for motorsport applications. Additional input devices can be connected via Ethernet, CAN buses, and RS 232.
Data Analysis Software WinDarab is available free of charge as “WinDarab V7 free” on our website. A basic logging function of 100 channels with recording of 50 ms (4 GB) is always included. The logger can be upgraded to full logging performance (max. 1 ms). In addition, a 2nd logging partition of 4 GB can be activated.
With the DDU 10, a completely new library of graphical elements for the individual design of display pages was implemented and an all-new user interface menu has been developed for the device. A configurable input activates the menu structure and the user can reset for example laptime, fuel consumption and many more, without having to connect a laptop to the DDU. The user can also install own graphics, pictures etc. on the 12 freely configurable display pages. For quick data transfer from the car, e.g. during pit stop, data copy to a USB stick is available as an option.
Ordering Information
Display DDU 10
Order number: F02U.V02.659-03
Rugged USB flash drive
Order number: F02U.V03.534-01
Connector for USB flash drive on car loom side
Order number: F02U.002.996-01
Adapter cable to PC USB-Port
Order number: F02U.V01.343-01
Software Options
CCP/XCP_MASTER
Order number: F02U.V02.213-01
FULL_LOG_1
Order number: F02U.V02.304-01
FULL_LOG_2
Order number: F02U.V02.305-01
IO_EXTENS
Order number: F02U.V02.205-01
DATA_USB
Order number: F02U.V03.476-01
Accessories
CAN Keypad CK-M12
Order number: F02U.V0U.328-04
Vehicle Loom Basic
Order number: F02U.V02.735-01
Bench Loom
Order number: F02U.V02.349-01
More information
Source of information: http://www.bosch-motorsport.de/content/downloads/Raceparts/en-GB/54977931309430283.html#/Tabs=54980363/
Features
- Features user interface menu
- Features display element design generator
- 8 top-LEDs and 5 side-LEDs on both sides
- Supports GPS laptrigger, pre-dated lap time etc.
- Page change based on events possible
The display DDU 11 integrates a programmable full colour dashboard display with a data logging system for motorsport applications. Additional input devices can be connected via Ethernet, CAN buses, and RS 232.
A basic logging function of 100 channels with recording rate of 20 Hz (50 ms) (4 GB) is always included. The logger can be upgraded to full logging performance (max. 1 kHz (1 ms)). In addition, a 2nd logging partition of 4 GB can be activated. An optional external GPS Sensor keeps track of position on the racetrack.
With the DDU 11, a library of graphical elements for the individual design of display pages and a state-of-the-art user interface menu is available. For quick data transfer from the car, e.g., during pit stop, data logging to a USB stick is available as an option.
Ordering Information
Display DDU 11
Order number: F02U.V03.208-03
Rugged USB flash drive
Order number: F02U.V03.534-01
Connector for USB flash drive on car loom side
Order number: F02U.002.996-01
Adapter cable to PC USB-Port
Order number: F02U.V01.343-01
Software Options
CCP/XCP_MASTER
Order number: F02U.V02.213-01
FULL_LOG_1
Order number: F02U.V02.304-01
FULL_LOG_2
Order number: F02U.V02.305-01
IO_EXTENS
Order number: F02U.V02.205-01
DATA_USB
Order number: F02U.V03.476-01
Accessories
Mating Connector Kit AMP Superseal
Order number: F02U.B01.201-01
More information
Source of information: http://www.bosch-motorsport.de/content/downloads/Raceparts/en-GB/262135691370528651.html#/Tabs=9007199516971403/
