Features

- State of the art user interface
- Versatile diagrams
- Numerous analysis functions
- Customizable mathematical channels and filters
- Software based license without dongle

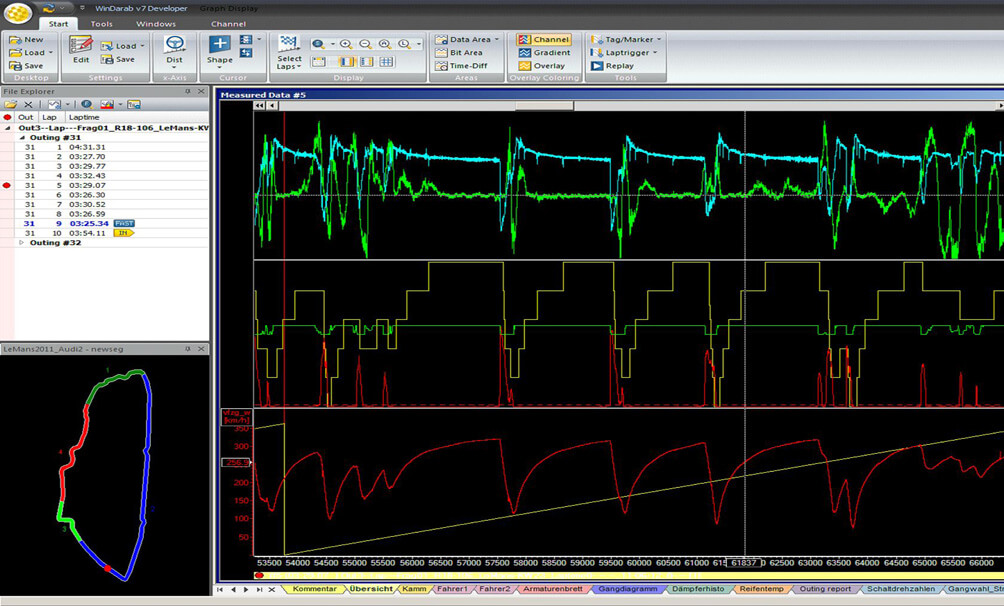

WinDarab V7 is an evaluation tool for monitoring and analyzing of logged data and is specially designed for motorsport use. Monitor vehicle data using online telemetry and compare logged data by reading out your data logger. WinDarab V7 features a state of the art user interface and reads out both engine and chassis data.
The follower of WinDarab V6 offers simplified and ergonomic handling as well as new features and a revised license system to work without a dongle.
Choose between the Free and the Expert version depending on your purpose.
The enormous bandwidth of features makes WinDarab V7 a perfect evaluation tool for motorsport engineers.

Please find further detailed information on the data sheet.

Ordering Information

WinDarab Free Version

Order number: free download at our homepage


WinDarab Expert

Order number: F02U.V01.308-01



Software Options

Software licence API for WinDarab Expert

Order number: F02U.V01.682-01


Yearly maintenance

Order number: F02U.V01.345-01



More Information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/55459595213067275.html#/Tabs=55517451/

Features

- An all integrated software tool for configuration and calibration

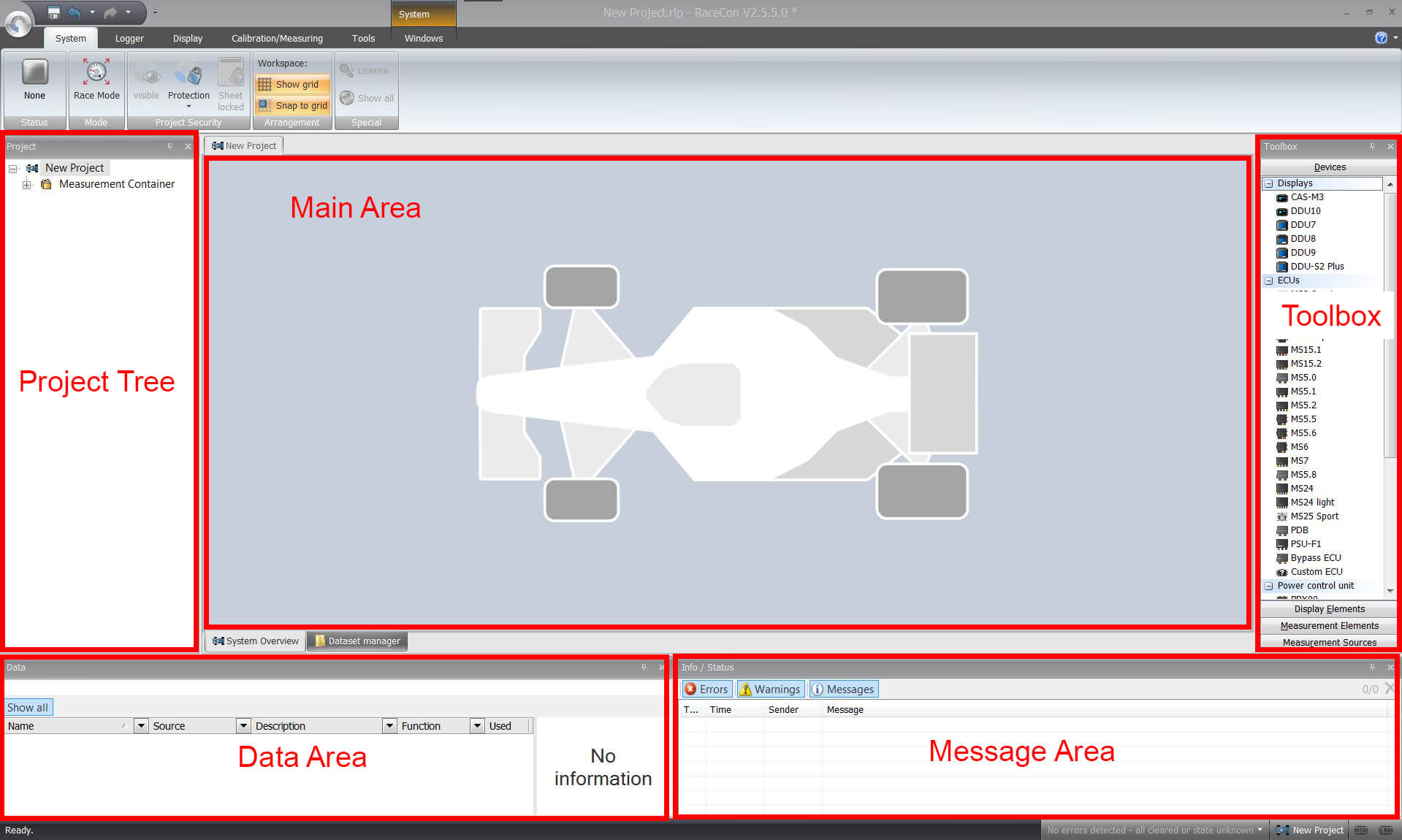

RaceCon is an all integrated software tool for configuration and calibration of Bosch Motorsport hardware products, such as ECUs, displays, loggers. The communication is based on Bosch Motorsport MSA-Box interface.

Ordering Information

System Configuration Tool RaceCon

Order number: free download at Bosch Motorsport homepage



More Information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/55253003213041931.html#/Tabs=9007199309996427/

Features

- Gives external tools access to WinDarab functionalities

Using COM-API allows some control over WinDarab:
Attaching to or creating new instances of WinDarab Application
Data Domain (opened files and overlays)
Cursor position – View range
Marked/Tagged range

Users can also compile their application as a WinDarab Plugin. This allows custom buttons and menus on the WinDarab Ribbon. Apart from plugins, applications using COM-API are out of process communication.

COM-API can create new measurement files
A 3rd party application/plugin can use the UserDataFile class to create new measurement files with application generated channel data.
Files created with the new API are written in WinDarab file format v2 which is supported since WinDarab v7.6.
A brief example how to write a file can be found in the BMS2ApiSamples.Net project, see the source in CreateUserDataFile.cs.

The application of COM-API requires the Expert-version of WinDarab, it doesn’t work with the Free-version.

Please find further detailed information on the data sheet.

Ordering Information

COM-API for WinDarab Expert

Order number: F02U.V01.682-01



More Information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/310162699.html#/Tabs=310222859/

Features

- Calculation directly in Bosch main ECU possible
- Communication binding via Software free cuts
- Unlimited bandwidth interfaces
- One Box Design (compact solution, no extra weight)

We provide the option to run software code on our ECUs that has been developed by the customer. This code is run in the customer code area (CCA) and is protected against access of anyone else. Within ECUs and VCUs, this feature can be run in parallel to all further functionality.
We deliver it with a full environment for Matlab/Simulink, a compiled Bosch model as library and a package of Matlab/Simulink interfaces to all I/Os.

Please find further detailed information on the data sheet.

Ordering Information

CCA Development Environment

Order number: F02U.V02.370-01


Multi CCA Development Environment for VCU

Order number: F02U.V03.223-01


CCA Hardware Upgrade per device

Order number: F02U.V02.137-01


Multi CCA Hardware Upgrade VCU per device

Order number: F02U.V03.222-01



More Information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/55552907119483403.html#/Tabs=55555339/

Features

- Has read access to raw files, Stream-Logging and Telemetry
- Supports USB and FTP data transfer from logger and USB sticks

The Bosch Data Direct Access API provides access to the logged data and telemetry data of Bosch Motorsport data logger devices. It can be included in user specific applications to monitor and analyse car data in the most efficient and flexible way.
The Bosch Data Direct Access is a .NET class library for converting measurement data from data logger devices to an application-defined data format.
The supported source data can be delivered by
Telemetry streams from Bosch loggers
Raw measurement files from Bosch loggers
Supports USB and FTP data transfer from logger and USB stick
Updates for new features are included; single seat licenses are provided and have a runtime of one year.
The Bosch Data Direct Access API is the first module of the all-new Bosch Data Management world for reading and writing different types of data in the Bosch Motorsport data systems.

Please find further detailed information on the data sheet.

Ordering Information

Data Direct Access API
One License, one seat for one year

Order number: F02U.V03.264-01



More Information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/310158347.html#/Tabs=310167435/

Features

- Simulate Bosch model and Customer model together in the same simulation environment
- Develop Bosch Motorsport control systems (ECU/VCU) in a simulation environment with other plant models (e.g. tire, ABS)
- Enables use of Bosch models (via PTWinSim) in other simulation environments like rFpro
- Execute your control system faster than real-time on a Windows 10 PC
- Perform real-time analysis on telemetry streams or other data sources

These simulation packages allow customers that use Bosch Motorsport control systems to simulate the functionality without using the hardware. These packages enable the user to run Bosch Motorsport and customer code area functions within the PTWinSim® environment.
PTWinSim® provides a framework and supporting functionality enabling several applications to execute in a coherent time frame on a variety of hosts.
Applications ranging from Engine Control Unit code to vehicle system models with complex control algorithms are simply adapted for the simulation environment. Furthermore, with WinDarab COM API, Bosch Motorsport customers can use WinDarab datasets as stimuli and logging for their simulated control system.
Device Simulation Runtime provides the runtime licenses to run a Bosch Motorsport simulation package within PTWinSim®. This requires an individual and project specific simulation software, which needs to be ordered separately.
CCA Simulation Package also provides the option for users of CCA to generate their own simulation software. Device Simulation Runtime is included.

Please find further detailed information on the data sheet.

Ordering Information

CCA Simulation Package
CCA Simulation development target to build and execute customer code.
Including 1 Device Simulation Runtime license and 1 year maintenance.

Order number: F02U.V02.893-01


Device Simulation Runtime
Device Simulation Runtime license to execute simulation on a PC and 1 year maintenance

Order number: F02U.V02.891-01


CCA Simulation Package Annual Maintenance

Order number: F02U.V02.892-01


Device Simulation Runtime Annual Maintenance

Order number: F02U.V02.890-01



More Information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/173735179200882059.html#/Tabs=173827723/

Features

- Professional Simulation Tool
- Free / Chassis / Engine Versions available
- Find the Operation Manual here.
- Find the Installation Manual here.

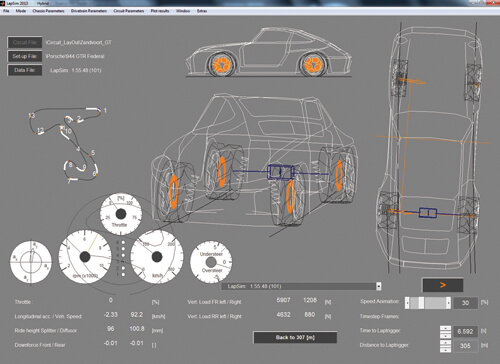

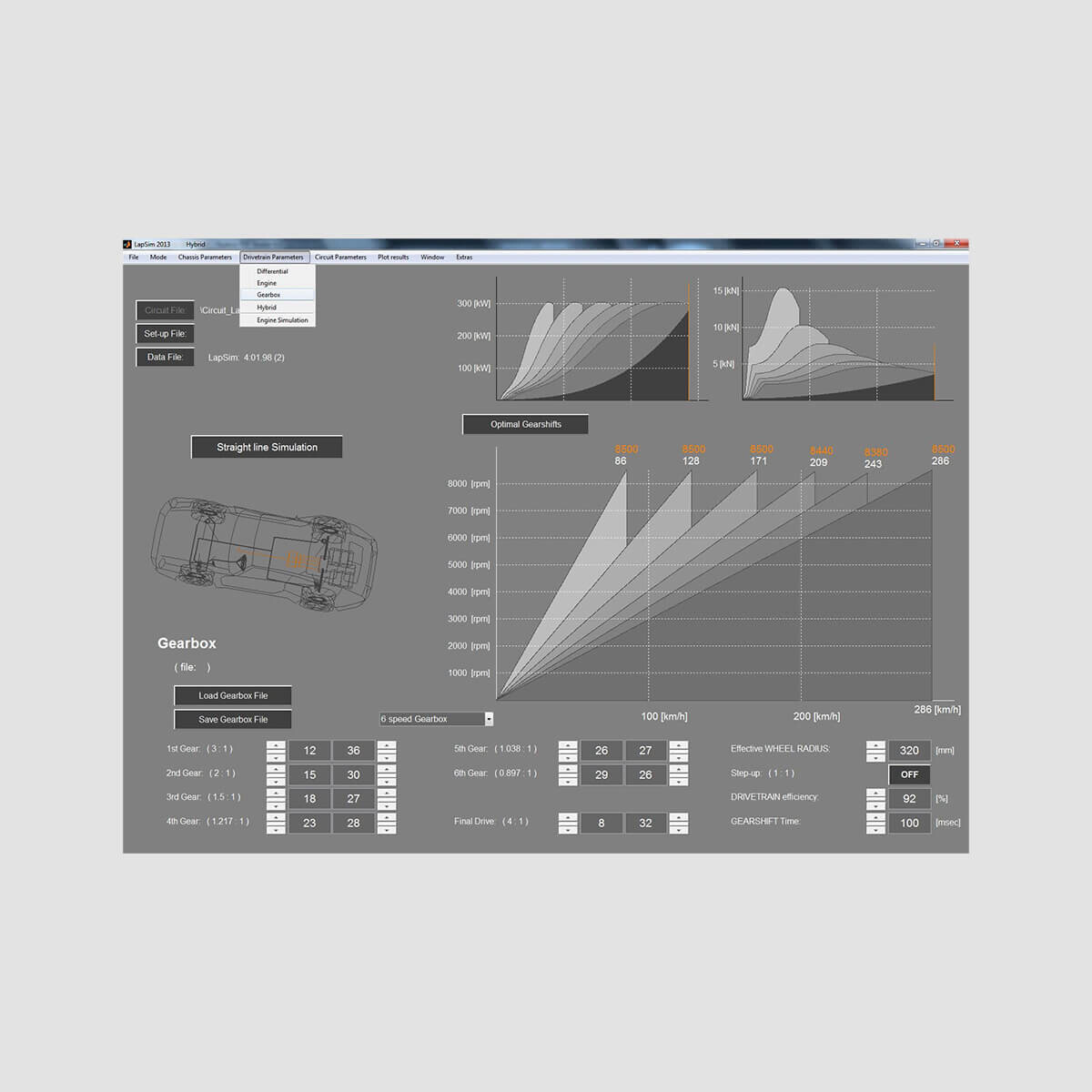

LapSim Chassis
is both an analysis tool as well as a vehicle simulation program. By further processing the on-car recorded data, using parts of the simulation models, a much more profound analysis of the vehicle behavior can be gained. Due to the direct link with the simulation model, vehicle parameters can be validated like aerodynamics, tire behavior, engine power, as well as driver performance. The visualization of the vehicle behavior creates a much easier and better understanding of the influence of several vehicle parameters on the performance independent of the technical background of the user.

LapSim Engine
supplies an easy to use engine simulation package capable of generating a torque/power and a corresponding ignition curves out of the main parameters of an engine. The model is able to simulate any 4-stroke spark ignition (SI) race engine currently seen on the market, with or without air restrictor(s). To summarize, the engine software is aiming for 95 % accuracy but 5 % the effort of complex engine software packages. The engine software avoids a vast number of variables in order to define every engine detail, in order to improve usability as well as computational performance. The engine package is integrated in the lap simulation.

Please find further detailed information on the data sheet.

Ordering Information

LapSim Chassis Free Version

Order number: free download at our homepage


LapSim Chassis License

Order number: B261.206.432-01


LapSim Chassis and Engine License

Order number: F01T.A20.057-01



More Information

Source of information: https://www.bosch-motorsport.com/content/downloads/Raceparts/en-GB/55386123217022987.html#/Tabs=55388299/
